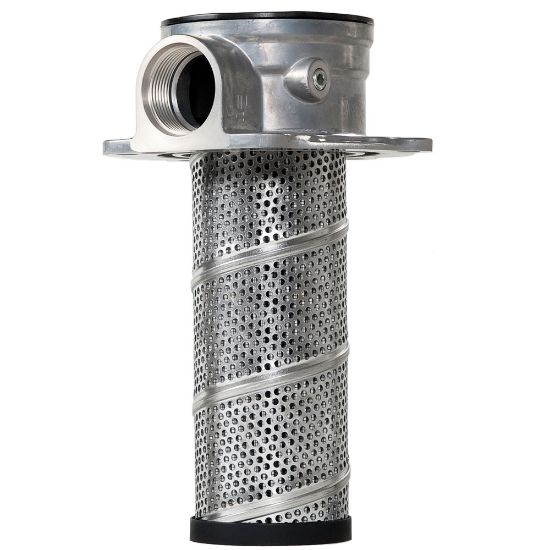

Parker PT4205QBPGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4205QBPGS16W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	2.17 lb	Maximum Operating Temperature	225.0 °F
Mounting Style	Tank Mounted	Compatible Element	936747
Housing Material	Aluminum	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Pressure Setting	Steel Weld Ring	Bypass Valve Pressure Rating	1.7 bar
Indicator Type	Plugged ports	Pressure Rating	10.3 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Flow Rate	189.3 L/min	Options	Tank Mounted
Filter Element Type	05Q Microglass	Indicator Type	Plugged Ports
Options	Steel weld ring	Seal Material	Nitrile
Port Connection Type	SAE-16	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	05Q Microglass	Flow Rate	50 gpm (189.3 lpm)
