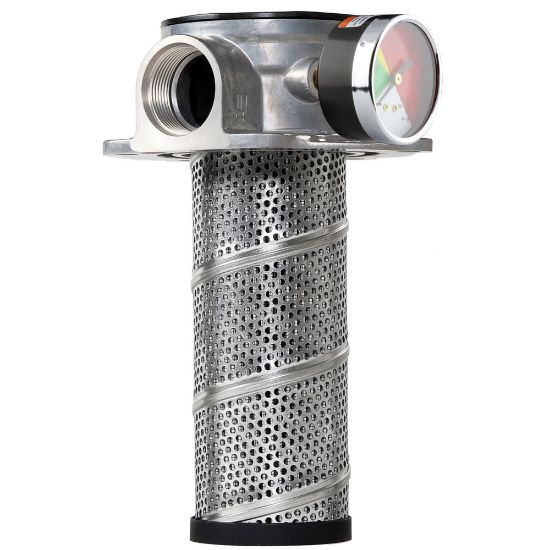

Parker PT4205QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4205QBGGS201

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Bypass Valve Pressure Rating	1.7 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107.0 °C	Seal Material	Nitrile
Options	Tank Mounted	Pressure Rating	10.3 bar
Mounting Style	Tank Mounted	Flow Rate	189.3 L/min
Filter Element Type	05Q Microglass	Compatible Element	936747
Indicator Pressure Setting	No Indicator	Weight	0.98 kg
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Filter Element Type	05Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Flow Rate	50 gpm (189.3 lpm)	Port Connection Type	SAE-20
Indicator Type	Pressure gauge, 25 psi	Seal Material	Nitrile
