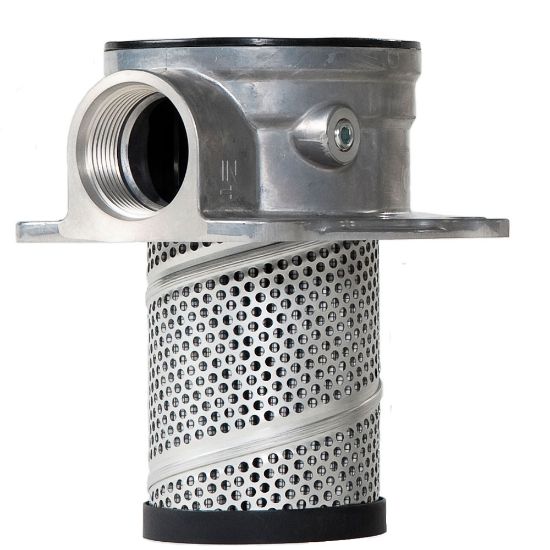

Parker PT4110QBPGS16W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4110QBPGS16W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Options	Tank Mounted	Weight	1.79 lb
Mounting Style	Tank Mounted	Compatible Element	936744
Filter Element Type	10Q Microglass	Flow Rate	30.0 Gal/min
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Indicator Pressure Setting	Steel Weld Ring	Pressure Rating	15 psi
Indicator Type	Plugged ports	Bypass Valve Pressure Rating	1.7 bar
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107.0 °C	Indicator Type	Plugged Ports
Filter Element Type	10Q Microglass	Options	Steel weld ring
Seal Material	Nitrile	Flow Rate	30 gpm (113.6 lpm)
Port Connection Type	SAE-16	Bypass Valve Pressure Rating	25 psid (1.7 bar)
