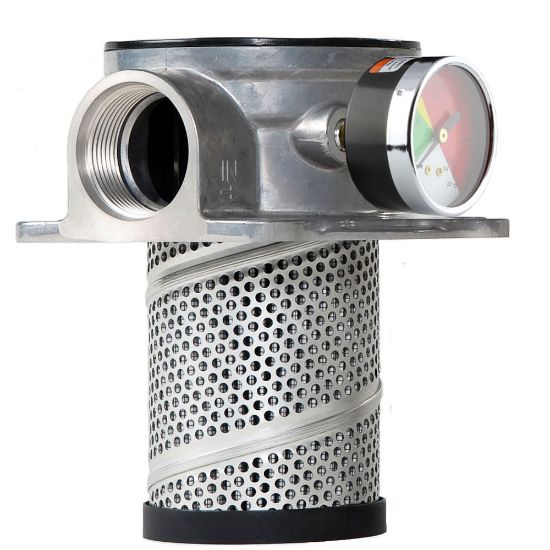

Parker PT4105QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4105QBGGS201

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.81 kg	Bypass Valve Pressure Rating	1.7 bar
Flow Rate	113.6 L/min	Compatible Element	936743
Seal Material	Nitrile	Maximum Operating Temperature	107.0 °C
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	05Q Microglass	Options	Tank Mounted
Mounting Style	Tank Mounted	Indicator Pressure Setting	No Indicator
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Indicator Type	Pressure gauge, 25 psi	Flow Rate	30 gpm (113.6 lpm)
Options	None	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	05Q Microglass	Port Connection Type	SAE-20
Indicator Type	Pressure gauge, 25 psi	Seal Material	Nitrile
