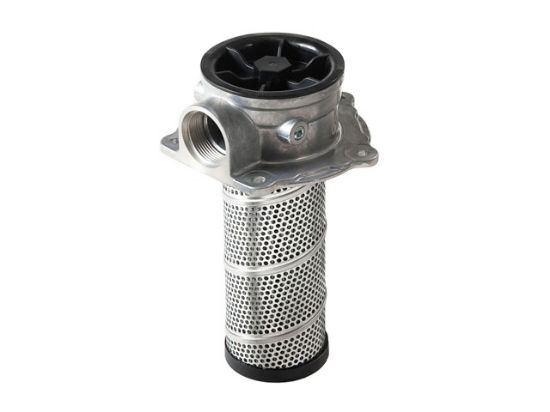

Parker PT4102QBPGS161 - PT4 Series Low Pressure Filter

PT4 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT4102QBPGS161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nominal Filter Rating	2 micron	Element Length	Single
Options	No Option	Seals	Nitrile
UOM	EA	Bypass	25 PSI (1.7 bar)
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Nominal Flow Rating	15 GPM (57 LPM)
Indicator Type	Plugged Indicator	Pkg Qty	1
Operating Temperature	-40F to 225F (-40C to 107C)	Replacement Element	936742
Port	16 SAE	Operating Temperature	-40F to 225F (-40C to 107C)
Parker Group	Filtration	Filter Type	Low Pressure Filter
Parker Division	Hydraulic Filter	Series	PT4
Port Type	SAE	Nominal Flow Rating	15 GPM (57 LPM)
Bypass	25 PSI (1.7 bar)	Filter Media Code	02Q
Filter Media Type	Microglass III	Seals	Nitrile
Port	16 SAE	Nominal Filter Micron Rating	2 micron
Options	No Option	Element Length	Single
Indicator Type	Plugged Indicator	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)

Product resources

PT Series (PDF)
