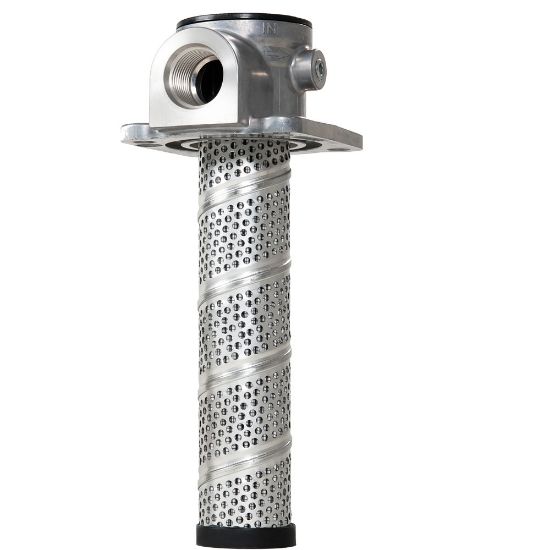

Parker PT2210QBPGN121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2210QBPGN121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Element	936756	Indicator Type	Plugged ports
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Options	Tank Mounted	Flow Rate	94.6 L/min
Mounting Style	Tank Mounted	Maximum Operating Temperature	225.0 °F
Bypass Valve Pressure Rating	25.0 psid	Indicator Pressure Setting	No Indicator
Housing Material	Aluminum	Pressure Rating	15 psi
Weight	0.49 kg	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	10Q Microglass	Flow Rate	25 gpm (94.6 lpm)
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Options	None
Filter Element Type	10Q Microglass	Indicator Type	Plugged Ports
Seal Material	Nitrile	Port Connection Type	3/4” NPT
