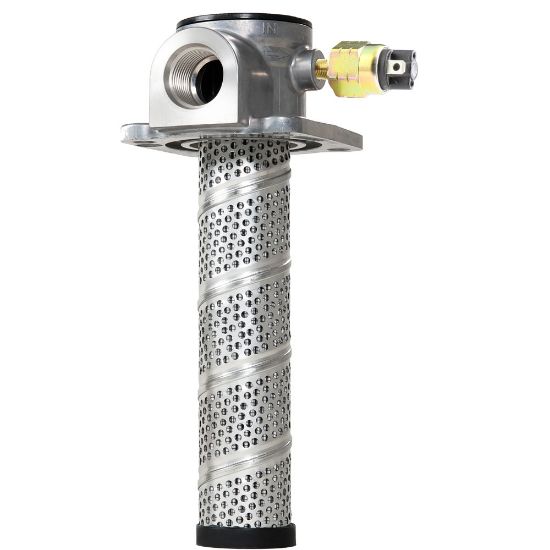

Parker PT2205QBSGS121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2205QBSGS121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bypass Valve Pressure Rating	1.7 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Flow Rate	25.0 Gal/min	Seal Material	Nitrile
Options	Tank Mounted	Filter Element Type	05Q Microglass
Mounting Style	Tank Mounted	Weight	1.07 lb
Indicator Pressure Setting	No Indicator	Maximum Operating Temperature	225.0 °F
Indicator Type	Pressure Switch	Compatible Element	936755
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Pressure Rating	15 psi	Flow Rate	25 gpm (94.6 lpm)
Indicator Type	Pressure Switch	Options	None
Filter Element Type	05Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Port Connection Type	SAE-12	Seal Material	Nitrile
