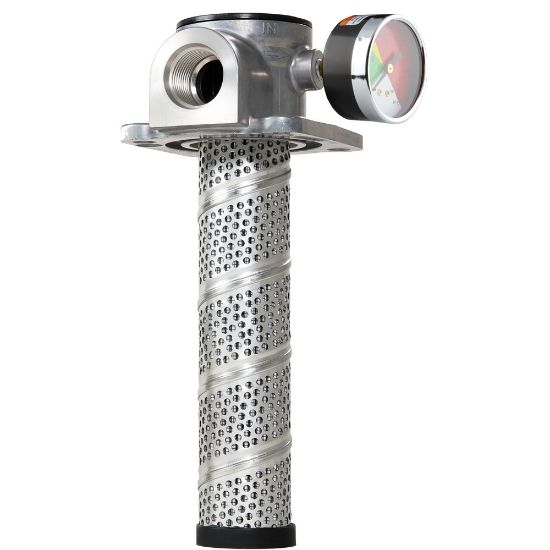

Parker PT2202QBGGS12W - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2202QBGGS12W

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Filter Element Type	02Q Microglass
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Pressure Rating	15 psi	Indicator Pressure Setting	Steel Weld Ring
Bypass Valve Pressure Rating	1.7 bar	Maximum Operating Temperature	107.0 °C
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Compatible Element	936754	Flow Rate	94.6 L/min
Options	Tank Mounted	Mounting Style	Tank Mounted
Weight	1.07 lb	Indicator Type	Pressure gauge, 25 psi
Seal Material	Nitrile	Filter Element Type	02Q Microglass
Flow Rate	25 gpm (94.6 lpm)	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Port Connection Type	SAE-12	Options	Steel weld ring
