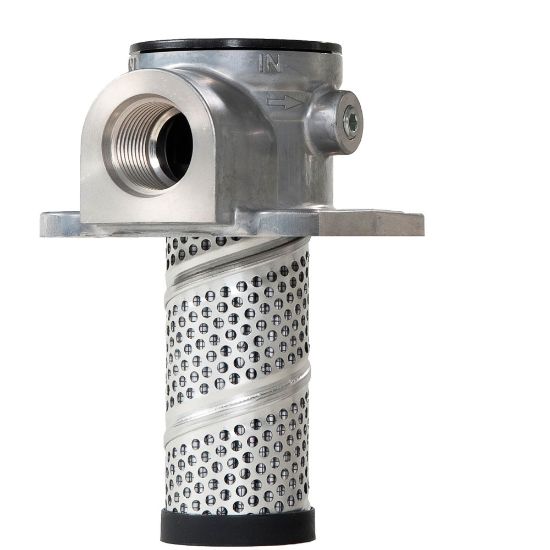

Parker PT2110QBPGS121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2110QBPGS121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Options	Tank Mounted	Mounting Style	Tank Mounted
Maximum Operating Temperature	225.0 °F	Indicator Pressure Setting	No Indicator
Flow Rate	10.0 Gal/min	Compatible Element	936752
Filter Element Type	10Q Microglass	Housing Material	Aluminum
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Pressure Rating	15 psi
Weight	0.36 kg	Bypass Valve Pressure Rating	1.7 bar
Indicator Type	Plugged ports	Filter Element Type	10Q Microglass
Indicator Type	Plugged Ports	Port Connection Type	SAE-12
Seal Material	Nitrile	Flow Rate	10 gpm (37.8 lpm)
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Options	None
