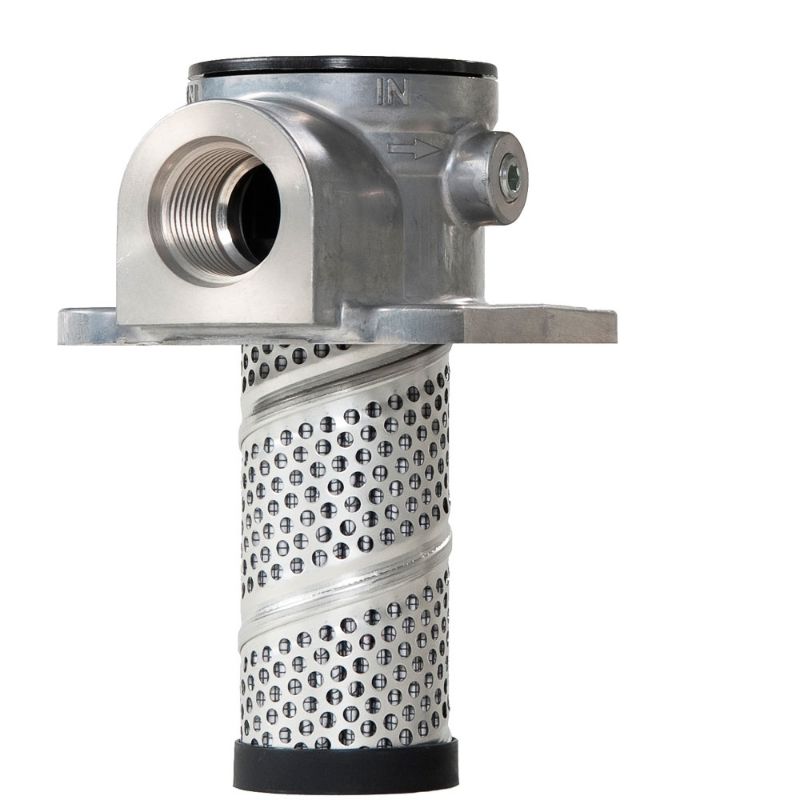

Parker PT2110QBPGG121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2110QBPGG121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Type	Plugged ports	Maximum Operating Temperature	107.0 °C
Seal Material	Nitrile	Pressure Rating	10.3 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Mounting Style	Tank Mounted
Options	Tank Mounted	Bypass Valve Pressure Rating	25.0 psid
Indicator Pressure Setting	No Indicator	Flow Rate	37.8 L/min
Compatible Element	936752	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Housing Material	Aluminum	Weight	0.36 kg
Filter Element Type	10Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Filter Element Type	10Q Microglass	Indicator Type	Plugged Ports
Seal Material	Nitrile	Port Connection Type	G3/4” BSPP2
Flow Rate	10 gpm (37.8 lpm)	Options	None
