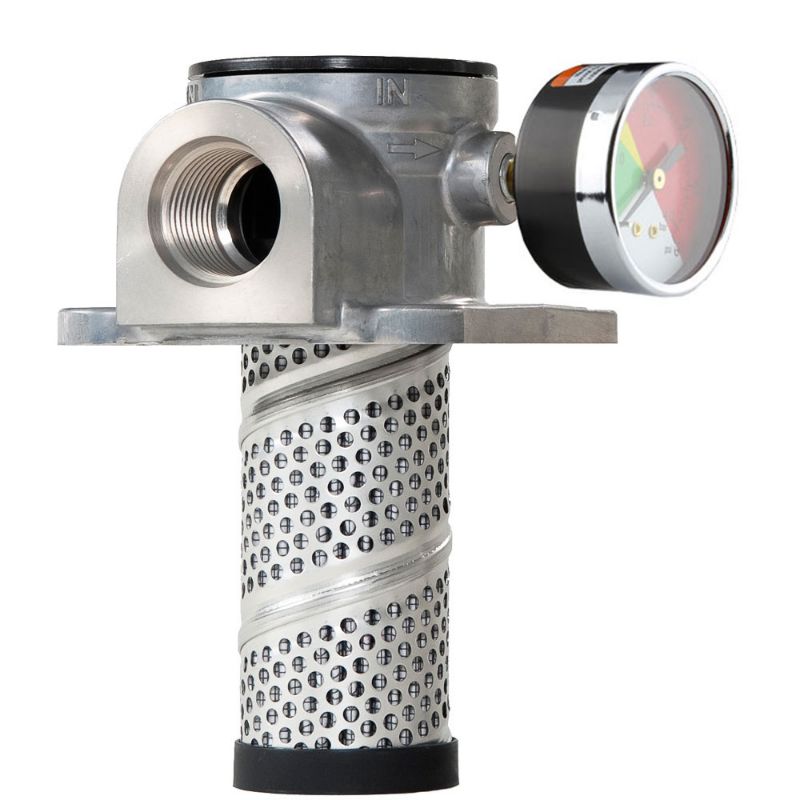

Parker PT2110QBGGN121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2110QBGGN121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.8 lb	Bypass Valve Pressure Rating	25.0 psid
Mounting Style	Tank Mounted	Maximum Operating Temperature	225.0 °F
Indicator Pressure Setting	No Indicator	Flow Rate	37.8 L/min
Housing Material	Aluminum	Filter Element Type	10Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Pressure gauge, 25 psi
Compatible Element	936752	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Pressure Rating	10.3 bar
Options	Tank Mounted	Filter Element Type	10Q Microglass
Indicator Type	Pressure gauge, 25 psi	Seal Material	Nitrile
Port Connection Type	3/4” NPT	Flow Rate	10 gpm (37.8 lpm)
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Options	None
