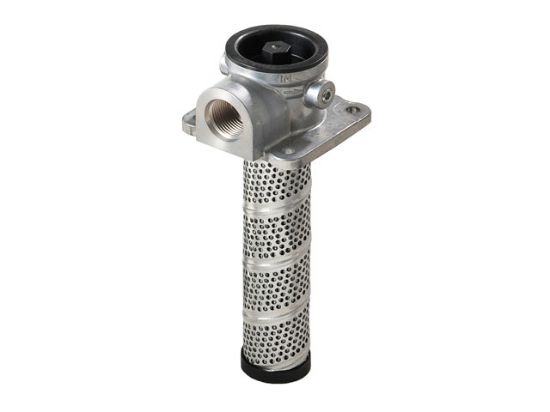

Parker PT2102QBGGS121 - PT2 Series Low Pressure Filter

PT2 Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2102QBGGS121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nominal Flow Rating	10 GPM (38 LPM)	Indicator Type	Pressure Gauge - 25 psi
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Replacement Element	936750	Nominal Filter Rating	2 micron
Element Length	Single	Options	No Option
UOM	EA	Seals	Nitrile
Bypass	25 PSI (1.7 bar)	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Port	12 SAE	Options	No Option
Nominal Filter Micron Rating	2 micron	Element Length	Single
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Operating Temperature	-40F to 225F (-40C to 107C)
Nominal Flow Rating	10 GPM (38 LPM)	Parker Group	Filtration
Parker Division	Hydraulic Filter	Filter Type	Low Pressure Filter
Port	12 SAE	Series	PT2
Port Type	SAE	Indicator Type	Pressure Gauge - 25 psi
Bypass	25 PSI (1.7 bar)	Filter Media Code	02Q
Filter Media Type	Microglass III	Seals	Nitrile

Product resources

PT Series (PDF)
