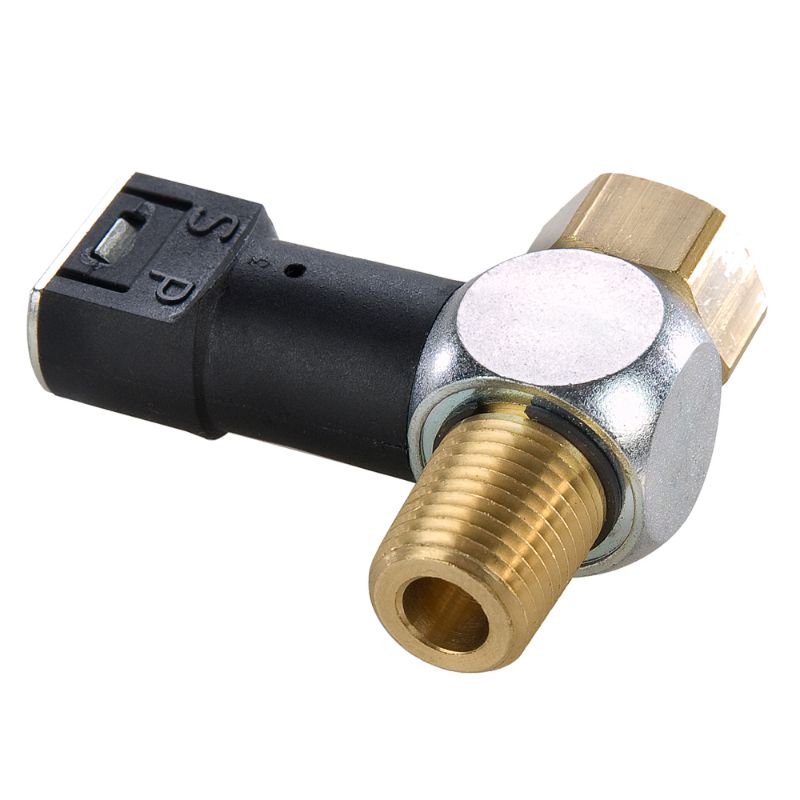

Parker PSPJ731-4 - Threshold Sensor Fittings - Inch

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSPJ731-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	115 psi	Response Time	3 ms
Minimum Operating Temperature	5 °F	Maximum Operating Temperature	140 °F
Division	Fluid System Connectors Division	Application	Packaging
Bolt Material	Brass	Body Material	Composite
Port Size	10-32 \| 1/8" \| 1/4" \| 3/8" \| 1/2"	Operational Life	10 Million
Operating Temperature	-15° to +60° °C	Maximum Operating Frequency	10 Hz
Operating Pressure	0 to 150 psi	Connection 1 Thread Size (inch)	1/4
Connection 1 Style	NPT	Pilot Line (inch)	10-32
Style	Male/Female Thread	Port Size (inch)	1/4
Port Type	NPT	Type	Pneumatic - 10-32 Pilot
