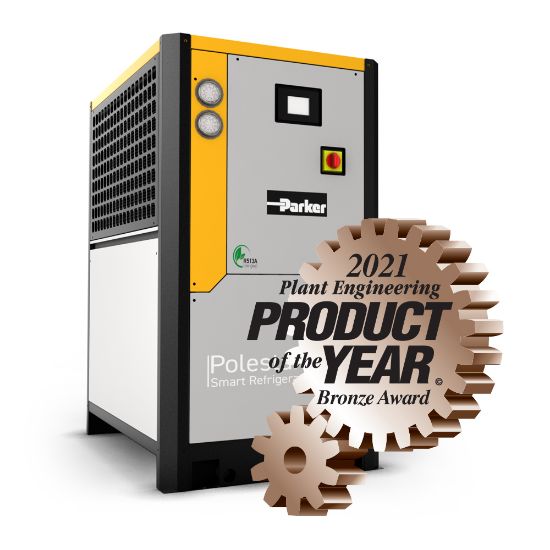

Parker PSE1400-W46036014EITS - PoleStar Smart-E (PSE) Series Cycling Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America

Energy saving refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 325-6000 scfm while maintaining industry leading low operating costs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSE1400-W46036014EITS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Pressure	2.0 barg	Maximum Operating Temperature	149.0 °F
Maximum Ambient Temperature	50.0 °C	Weight	380 kg
Product Type	Refrigeration	Optional Accessories	Dryer Only
Electronics Type	ETL Listed	Division	Industrial Gas Filtration and Generation Division
Port Connection	4 in	Minimum Operating Temperature	5.0 °C
Ingress Protection Rating	IP54	Pressure Dew Point	ISO 8573-1 Class 5 for Water
Connection Type	ANSI 150#	Brand	Parker
Height	1900.0 mm	Technology	Cycling
Maximum Operating Pressure	14.0 barg	Depth	50.7 inch
Refrigerant Type	R-513A	Width	38.3 inch
Cooling Method	Water Cooled Condenser	Electrical Requirements	460V / 3Ph / 60Hz
Flow Rate	1400 scfm (2379 m3/h)	Design Rating	100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient
