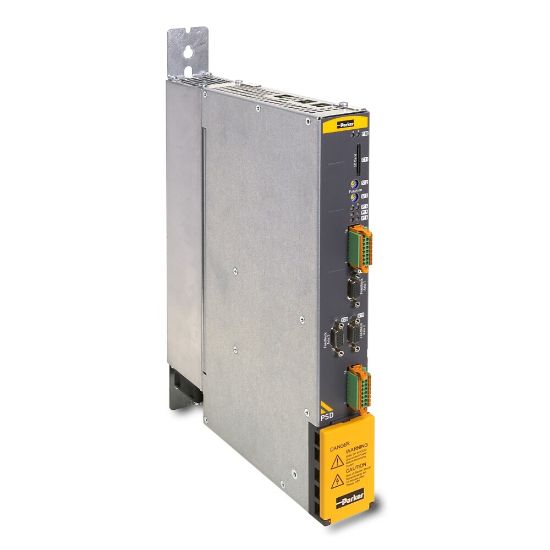

Parker PSD1MW3433C2200000 - Multi-Axis Servo Drives - PSD1M Series

PSD1M multi-axis servo drives have power ratings up to 20kVA with EtherCAT, auto-tuning, and STO plus support for various feedback devices. The space-saving PSD1M combines up to 3 drives in a single housing with a common energy sharing DC-bus.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSD1MW3433C2200000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Continuous Output Current Rating	1x 8 + 2x 5 A	Brand	Parker
Input Voltage	325 to 680 VDC	Compatible Motor Type	Frameless Servo
Programming Language	IEC 61131-3	Product Type	Servo Drive
Operating Temperature	0 to 40 °C	Communication Interface	Profinet
Division	Electronic Motion and Controls Division	Modes of Control	Position Control (External Command)
Drive Axis Type	Multi-Axis Technology	Specifications Met	cUL Listed
Compatible Feedback Device	Hiperface DSL Single Cable	Product Series	PSD1
Feedback Type	Multi-Feedback Input (DSL, Resolver, 1Vss Encoder, TTL Encoder, Analog Hall)	Output Current Rating	8A + 5A + 5A
Technology	Programmable	Interface Type	Multi-Fieldbus (EtherCAT/PROFINET/EtherNetIP)
