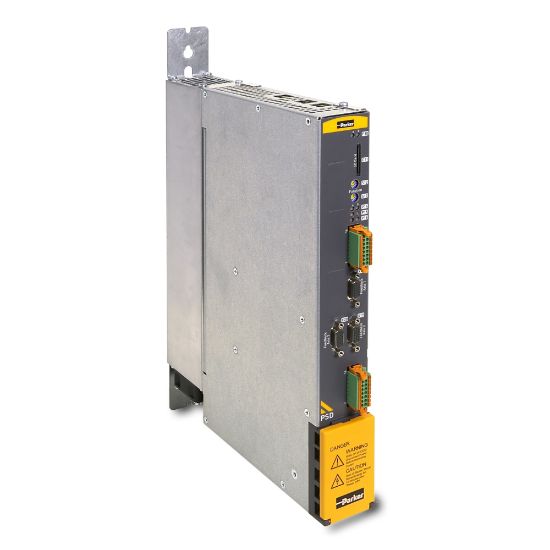

Parker PSD1MW2440B2200000 - Multi-Axis Servo Drives - PSD1M Series

PSD1M multi-axis servo drives have power ratings up to 20kVA with EtherCAT, auto-tuning, and STO plus support for various feedback devices. The space-saving PSD1M combines up to 3 drives in a single housing with a common energy sharing DC-bus.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSD1MW2440B2200000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible Feedback Device	Incremental TTL Encoder	Product Series	PSD1
Brand	Parker	Input Voltage	325 to 680 VDC
Compatible Motor Type	Frameless Servo	Specifications Met	CE (EMC & LVD)
Product Type	Servo Drive	Continuous Output Current Rating	2x 8 A
Operating Temperature	0 to 40 °C	Communication Interface	Profinet
Division	Electronic Motion and Controls Division	Drive Axis Type	Multi-Axis Technology
Modes of Control	Position Control (External Command)	Technology	Basic
Feedback Type	Multi-Feedback Input (DSL, Resolver, 1Vss Encoder, TTL Encoder, Analog Hall)	Interface Type	Multi-Fieldbus (EtherCAT/PROFINET/EtherNetIP)
Output Current Rating	8A + 8A
