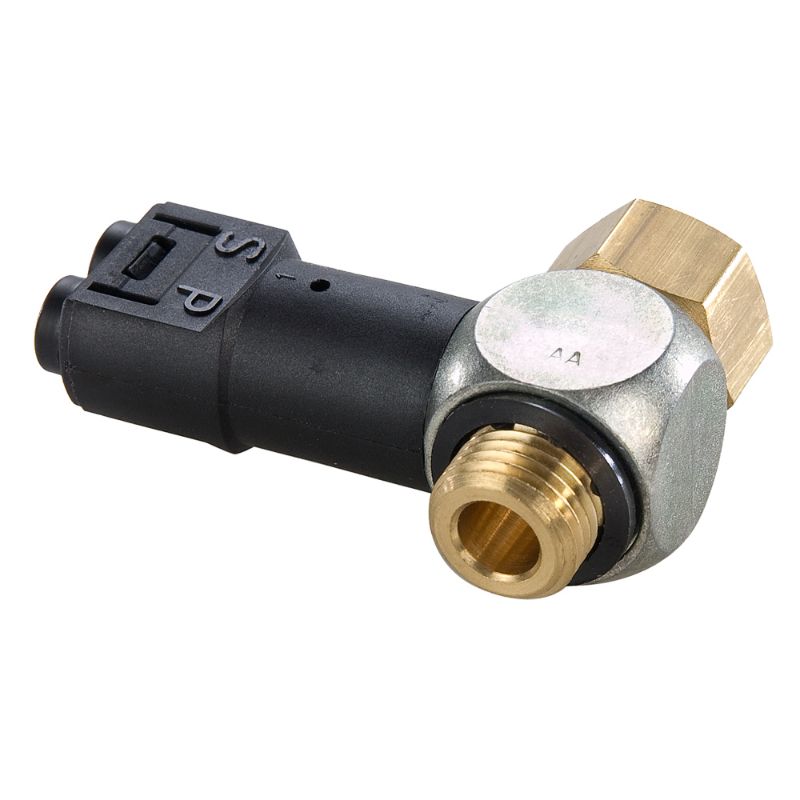

Parker PSBJ731-2 - Threshold Sensor Fittings - Inch

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSBJ731-2

$57.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	115 psi
Response Time	3 ms	Minimum Operating Temperature	5 °F
Application	Pneumatics	Maximum Operating Temperature	140 °F
Bolt Material	Brass	Port Size	10-32 \| 1/8" \| 1/4" \| 3/8" \| 1/2"
Operational Life	10 Million	Operating Temperature	-15° to +60° °C
Maximum Operating Frequency	10 Hz	Operating Pressure	0 to 150 psi
Body Material	Composite	Division	Fluid System Connectors Division
Connection 1 Style	NPT	Style	Male Thread
Connection 1 Thread Size (inch)	1/8	Pilot Line (inch)	5/32
Port Type	NPT/UNF	Port Size (inch)	1/8
Type	Pneumatic - 5/32 Pilot
