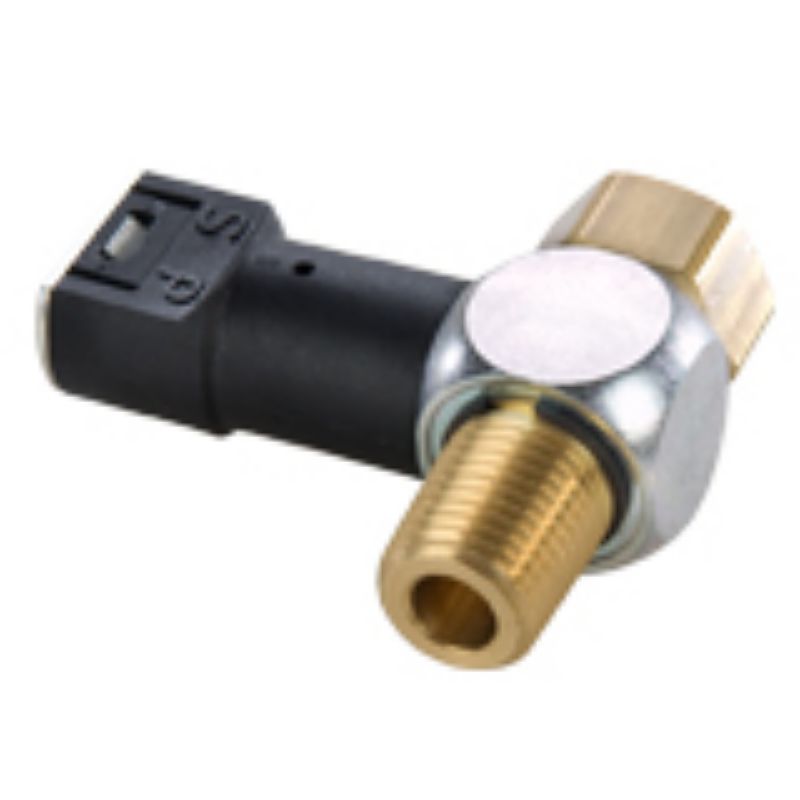

Parker PSBJ708-4G - Threshold Sensor Fittings - Metric

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSBJ708-4G

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	5 °F
Maximum Operating Temperature	140 °F	Bolt Material	Brass
Application	Packaging	Maximum Operating Pressure	115 psi
Response Time	3 ms	Division	Fluid System Connectors Division
Body Material	Composite	Style	Male Thread
Connection 1 Thread Size (mm)	1/4	Connection 1 Style	BSPP
Pilot Line (mm)	M5	Type	Pneumatic - M5 Pilot
Port Type	BSPP	Port Size (inch)	1/4
