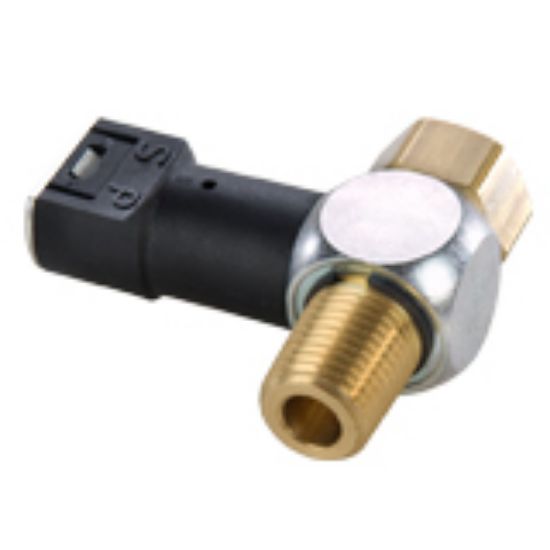

Parker PSBJ708-2G - Threshold Sensor Fittings - Metric

Threshold Sensors detects the pressure drop when a cylinder reaches the end of its stroke. They produce a pneumatic or electric output signal when the pressure drop in the exhaust chamber of the cylinder goes below their back pressure threshold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PSBJ708-2G

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Composite	Application	Robotics
Response Time	3 ms	Maximum Operating Pressure	115 psi
Minimum Operating Temperature	5 °F	Maximum Operating Temperature	140 °F
Bolt Material	Brass	Connection 1 Style	BSPP
Pilot Line (mm)	M5	Connection 1 Thread Size (mm)	1/8
Style	Male Thread	Port Size (inch)	1/8
Type	Pneumatic - M5 Pilot	Port Type	BSPP

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
