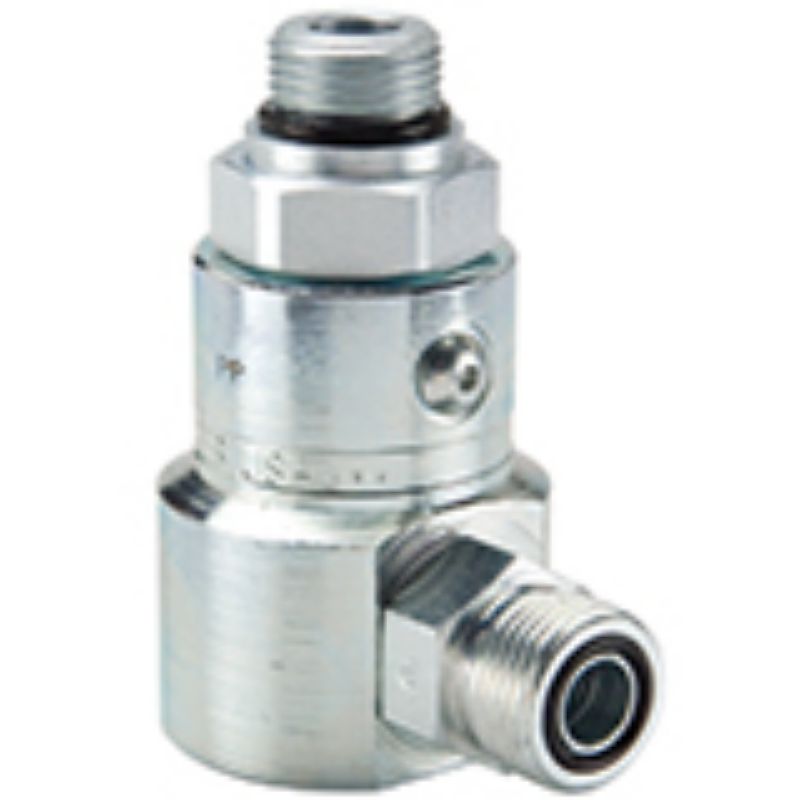

Parker PS6905JM-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. PS6905JM-6-6

$140.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.12464028776978417 lb
Configuration	90 degree	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Configuration	90 degree	Housing Connection Thread Size (inch)	11/16 - 16 UN
Body Size (inch)	3/8	Housing Connection Style	Male Seal-Lok
Shaft Connection Thread Size (inch)	9/16 - 18 UNF	Shaft Connection Style	Male SAE O-ring Straight Thread
Maximum Working Pressure (psi)	5000	Seal Material	Nitrile
