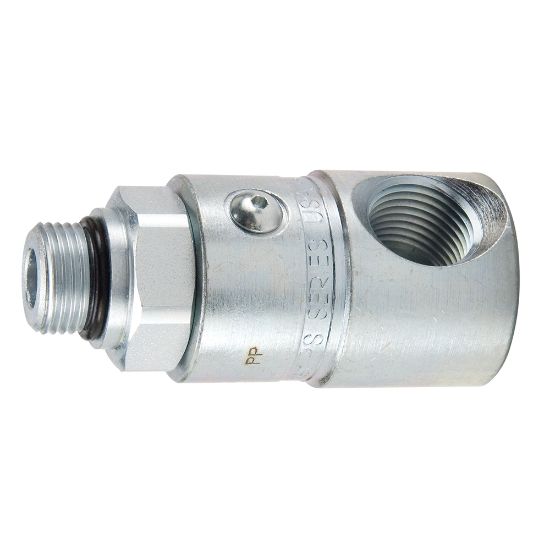

Parker PS690502-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS690502-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	250
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Configuration	90 degree	Minimum Operating Temperature	-40
Maximum Working Pressure (psi)	5000	Seal Material	Nitrile
Shaft Connection Style	Male SAE O-ring Straight Thread	Housing Connection Style	Female NPTF
Configuration	90 degree	Body Size (inch)	3/8
Shaft Connection Thread Size (inch)	9/16 - 18 UNF	Housing Connection Thread Size (inch)	3/8 - 18 NPTF
