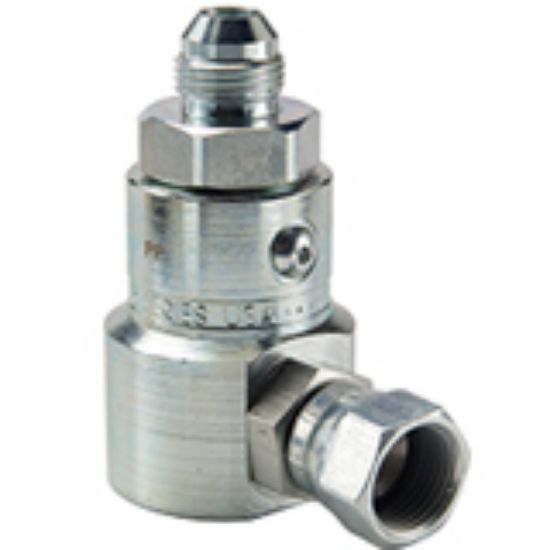

Parker PS690306-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS690306-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	90 degree	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Body Size (inch)	3/8	Shaft Connection Thread Size (inch)	9/16 - 18 UNF
Shaft Connection Style	Male JIC 37 degree	Housing Connection Style	Female JIC 37 degree
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Seal Material	Nitrile
Maximum Working Pressure (psi)	5000	Configuration	90 degree
