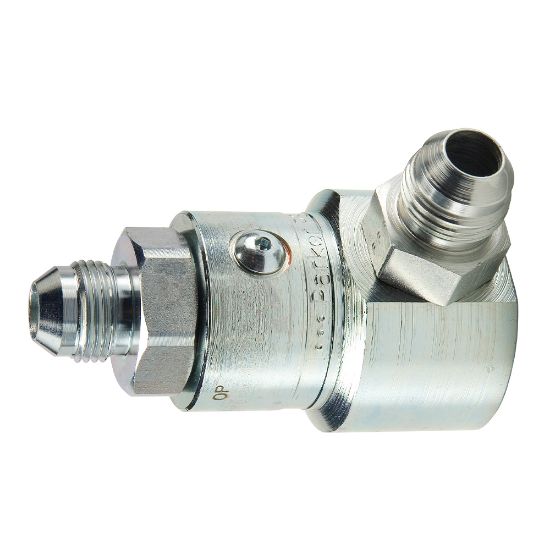

Parker PS690303-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS690303-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Body Material	Steel	Configuration	90 degree
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Configuration	90 degree
Body Size (inch)	3/8	Housing Connection Style	Male JIC 37 degree
Shaft Connection Thread Size (inch)	9/16 - 18 UNF	Shaft Connection Style	Male JIC 37 degree
Seal Material	Nitrile	Maximum Working Pressure (psi)	5000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
