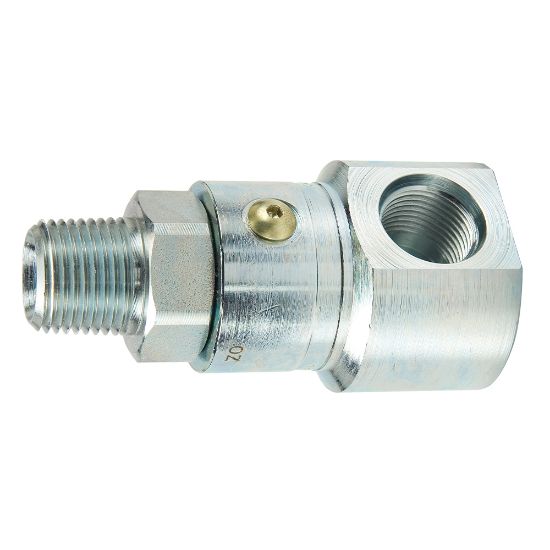

Parker PS690110-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS690110-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Configuration	90 degree
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Size (inch)	3/8	Seal Material	Nitrile
Shaft Connection Style	Male NPTF	Maximum Working Pressure (psi)	5000
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Housing Connection Style	Female SAE Straight Thread
Shaft Connection Thread Size (inch)	3/8 - 18 NPTF	Configuration	90 degree
