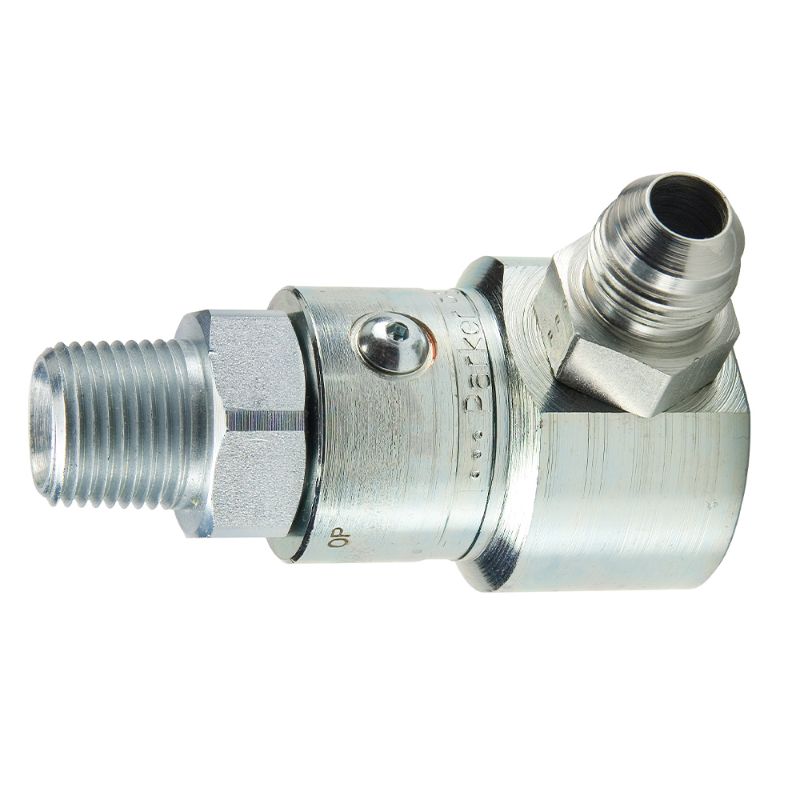

Parker PS690103-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. PS690103-6-6

$154.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	90 degree
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Body Material	Steel	Seal Material	Nitrile
Maximum Working Pressure (psi)	5000	Shaft Connection Style	Male NPTF
Housing Connection Thread Size (inch)	9/16 - 18 UNF	Configuration	90 degree
Shaft Connection Thread Size (inch)	3/8 - 18 NPTF	Body Size (inch)	3/8
Housing Connection Style	Male JIC 37 degree
