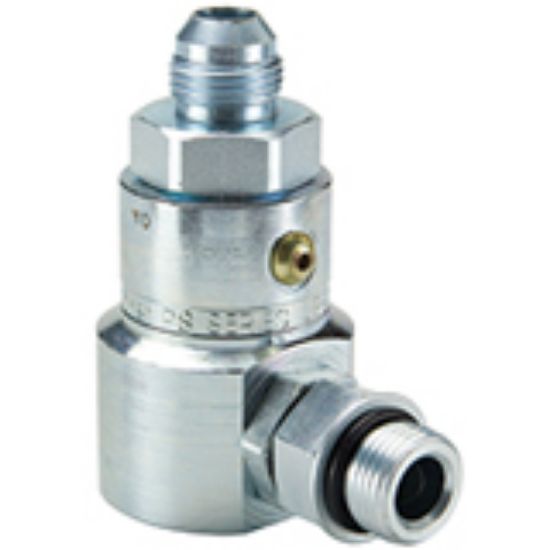

Parker PS490305-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS490305-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40	Division	Quick Coupling Division
Maximum Operating Temperature	250	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Configuration	90 degree
Shaft Connection Style	Male JIC 37 degree	Shaft Connection Thread Size (inch)	7/16 - 20 UNF
Maximum Working Pressure (psi)	5000	Housing Connection Thread Size (inch)	7/16 - 20 UNF
Seal Material	Nitrile	Body Size (inch)	1/4
Housing Connection Style	Male SAE O-ring Straight Thread	Configuration	90 degree
