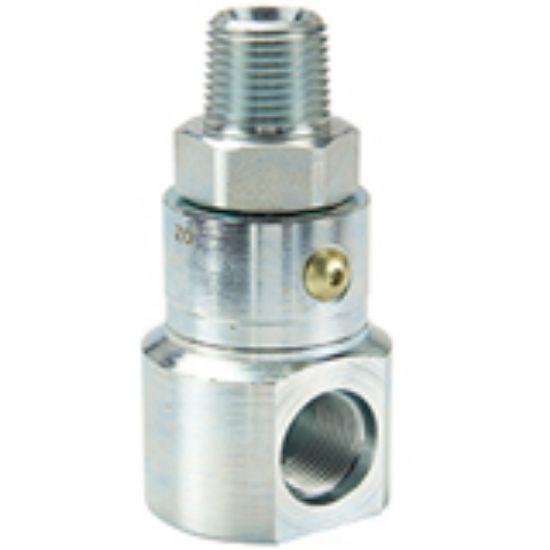

Parker PS490110-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS490110-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Configuration	90 degree
Seal Material	Nitrile	Housing Connection Thread Size (inch)	7/16 - 20 UNF
Maximum Working Pressure (psi)	5000	Shaft Connection Style	Male NPTF
Housing Connection Style	Female SAE Straight Thread	Body Size (inch)	1/4
Configuration	90 degree	Shaft Connection Thread Size (inch)	1/4 - 18 NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
