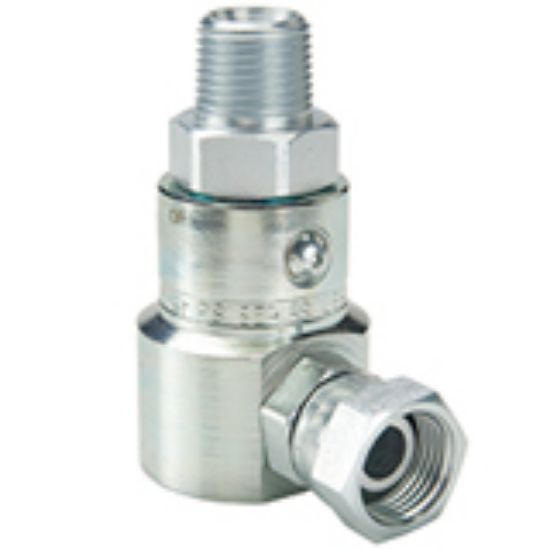

Parker PS490107-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS490107-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Temperature	250 °F
Configuration	90 degree	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Housing Connection Style	Female NPSM Pipe Swivel
Shaft Connection Style	Male NPTF	Maximum Working Pressure (psi)	5000
Seal Material	Nitrile	Body Size (inch)	1/4
Configuration	90 degree	Housing Connection Thread Size (inch)	1/4 - 18 NPSM
