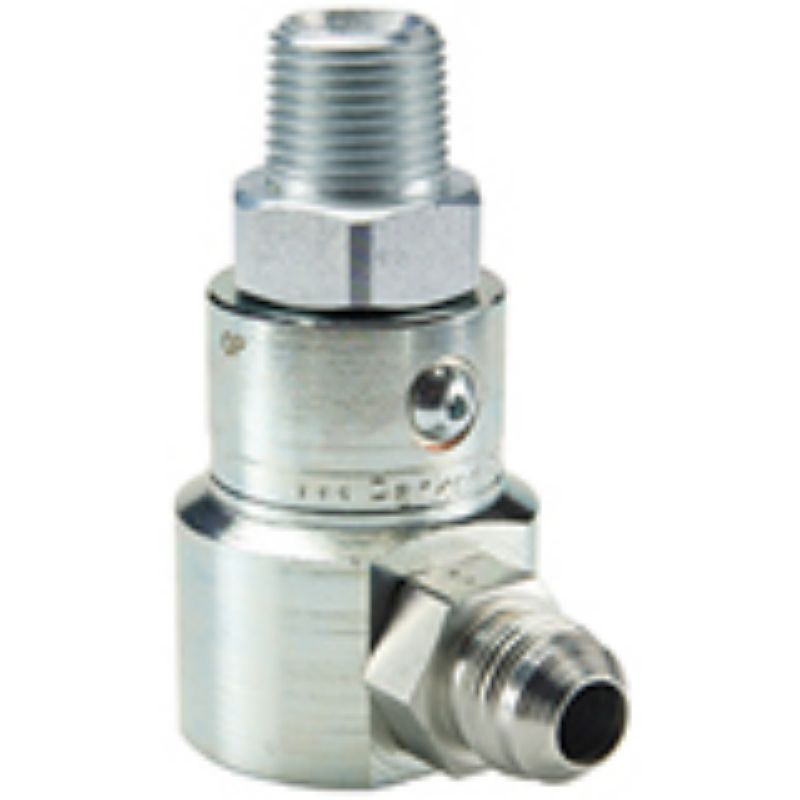

Parker PS490103-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS490103-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	90 degree	Housing Connection Thread Size (inch)	7/16 - 20 UNF
Maximum Working Pressure (psi)	5000	Body Size (inch)	1/4
Configuration	90 degree	Housing Connection Style	Male JIC 37 degree
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Seal Material	Nitrile
Shaft Connection Style	Male NPTF
