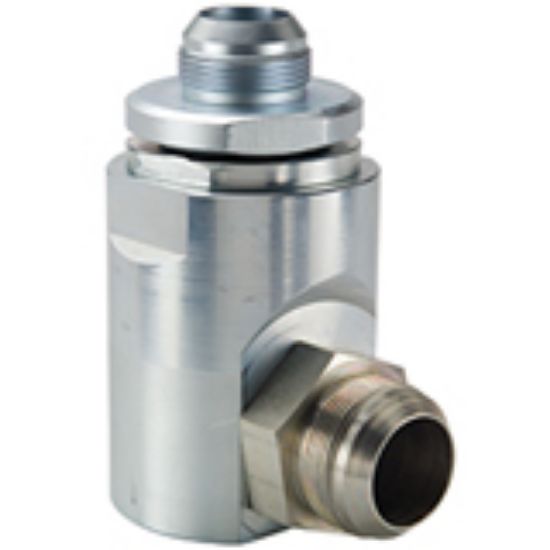

Parker PS2490303-24-24 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS2490303-24-24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	180	Division	Quick Coupling Division
Minimum Operating Temperature	-30	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Configuration	90 degree
Shaft Connection Thread Size (inch)	1 7/8 - 12 UN	Housing Connection Thread Size (inch)	1 7/8 - 12 UN
Configuration	90 degree	Seal Material	Polyurethane U-cup
Housing Connection Style	Male JIC 37 degree	Body Size (inch)	1 1/2
Shaft Connection Style	Male JIC 37 degree	Maximum Working Pressure (psi)	3000

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
