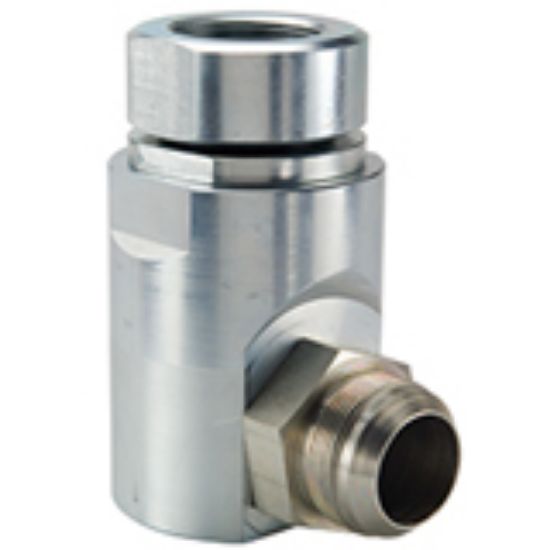

Parker PS2490203-20-20 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS2490203-20-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	90 degree	Maximum Operating Temperature	180
Division	Quick Coupling Division	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-30
Maximum Working Pressure (psi)	3000	Shaft Connection Thread Size (inch)	1 1/4 - 11 1/2 NPTF
Housing Connection Thread Size (inch)	1 5/8 - 12 UN	Configuration	90 degree
Shaft Connection Style	Female NPTF	Housing Connection Style	Male JIC 37 degree
Body Size (inch)	1 1/2	Seal Material	Polyurethane U-cup
