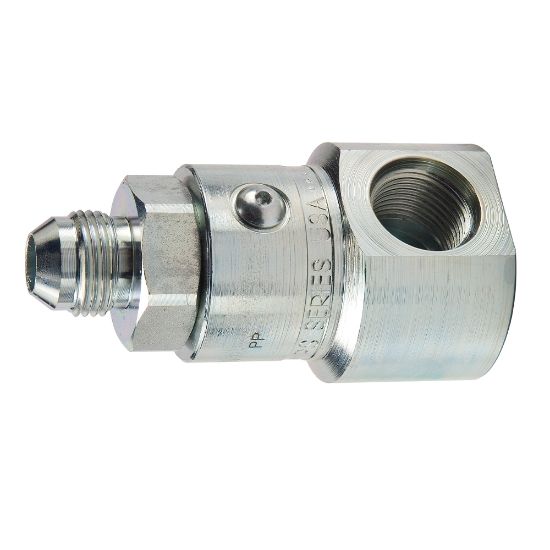

Parker PS1690310-16-16 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1690310-16-16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
Body Material	Steel	Configuration	90 degree
Housing Connection Style	Female SAE Straight Thread	Housing Connection Thread Size (inch)	1 5/16 - 12 UN
Shaft Connection Thread Size (inch)	1 5/16 - 12 UN	Configuration	90 degree
Shaft Connection Style	Male JIC 37 degree	Body Size (inch)	1
Maximum Working Pressure (psi)	5000	Seal Material	Nitrile
