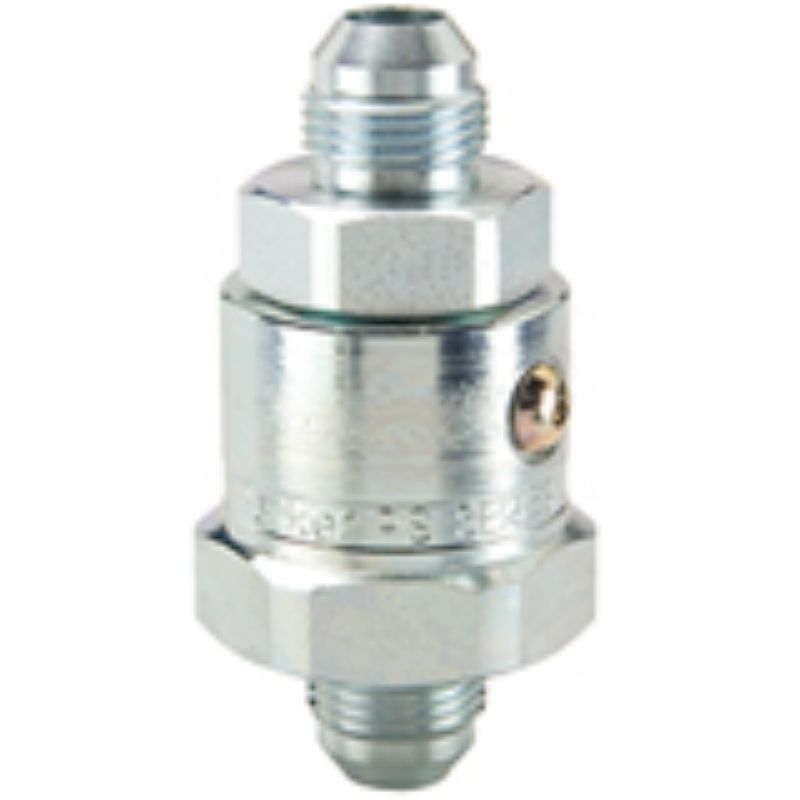

Parker PS1610303-16-16 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1610303-16-16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Maximum Operating Temperature	250	Plating Type	Zinc with clear trivalent chromate
Configuration	Inline	Body Material	Steel
Minimum Operating Temperature	-40	Housing Connection Thread Size (inch)	1 5/16 - 12 UN
Shaft Connection Thread Size (inch)	1 5/16 - 12 UN	Housing Connection Style	Male JIC 37 degree
Shaft Connection Style	Male JIC 37 degree	Body Size (inch)	1
Maximum Working Pressure (psi)	5000	Seal Material	Nitrile
Configuration	InLine
