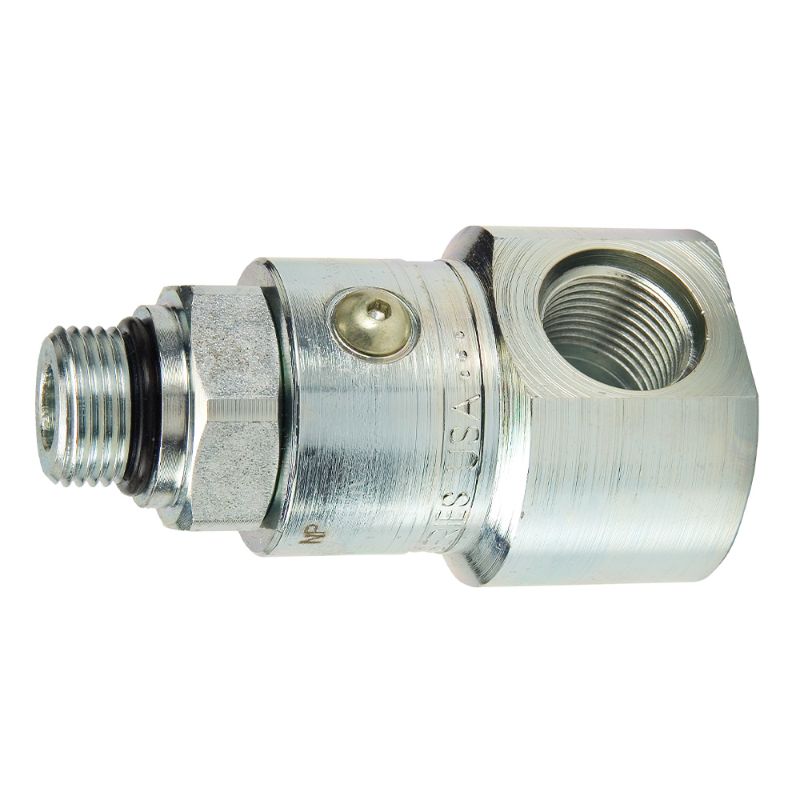

Parker PS1290510-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1290510-12-12

$232.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	90 degree
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Body Material	Steel	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Housing Connection Thread Size (inch)	1 1/16 - 12 UN
Body Size (inch)	3/4	Maximum Working Pressure (psi)	5000
Seal Material	Nitrile	Housing Connection Style	Female SAE Straight Thread
Shaft Connection Style	Male SAE O-ring Straight Thread	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Configuration	90 degree
