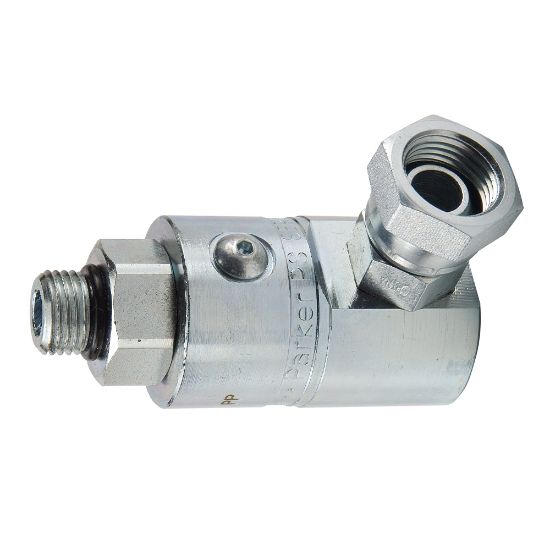

Parker PS1290507-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1290507-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	250
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Configuration	90 degree	Minimum Operating Temperature	-40
Seal Material	Nitrile	Shaft Connection Style	Male SAE O-ring Straight Thread
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Configuration	90 degree
Housing Connection Thread Size (inch)	3/4 - 14 NPSM	Maximum Working Pressure (psi)	3000
Body Size (inch)	3/4	Housing Connection Style	Female NPSM Pipe Swivel
