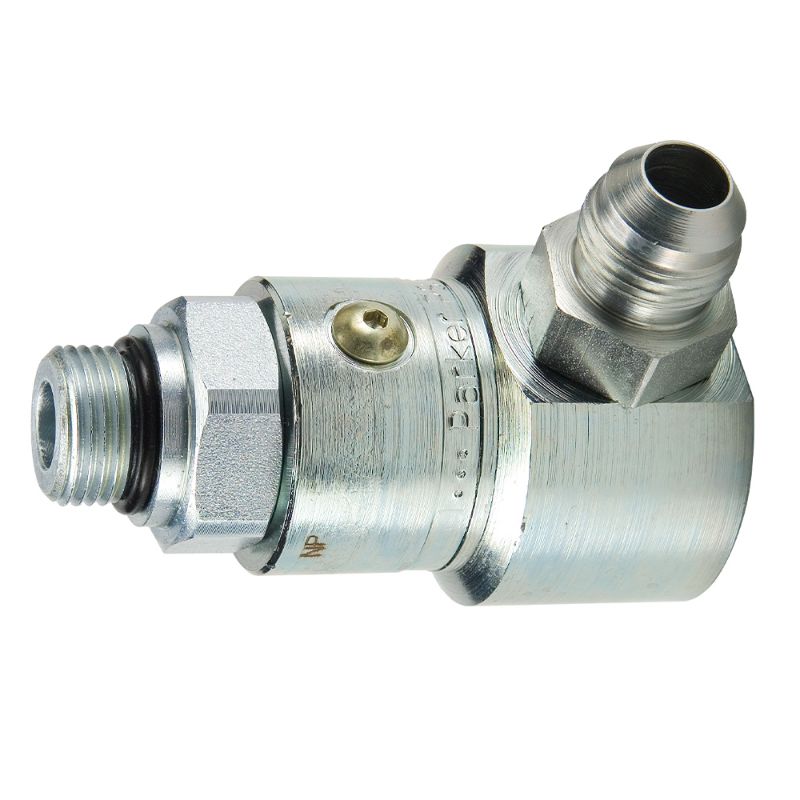

Parker PS1290503-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. PS1290503-12-12

$202.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	90 degree
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Dimensional Weight	0.22945143884892086 lb
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Body Size (inch)	3/4
Shaft Connection Style	Male SAE O-ring Straight Thread	Seal Material	Nitrile
Maximum Working Pressure (psi)	5000	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Configuration	90 degree	Housing Connection Style	Male JIC 37 degree
