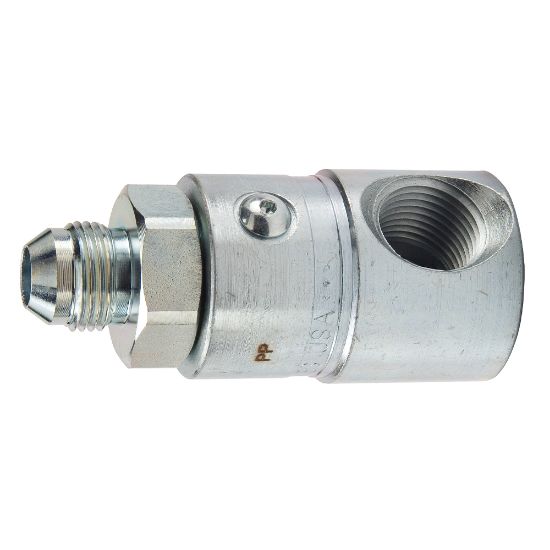

Parker PS1290302-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1290302-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	250 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Configuration	90 degree
Housing Connection Style	Female NPTF	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Housing Connection Thread Size (inch)	3/4 - 14 NPTF	Configuration	90 degree
Shaft Connection Style	Male JIC 37 degree	Body Size (inch)	3/4
Seal Material	Nitrile	Maximum Working Pressure (psi)	5000
