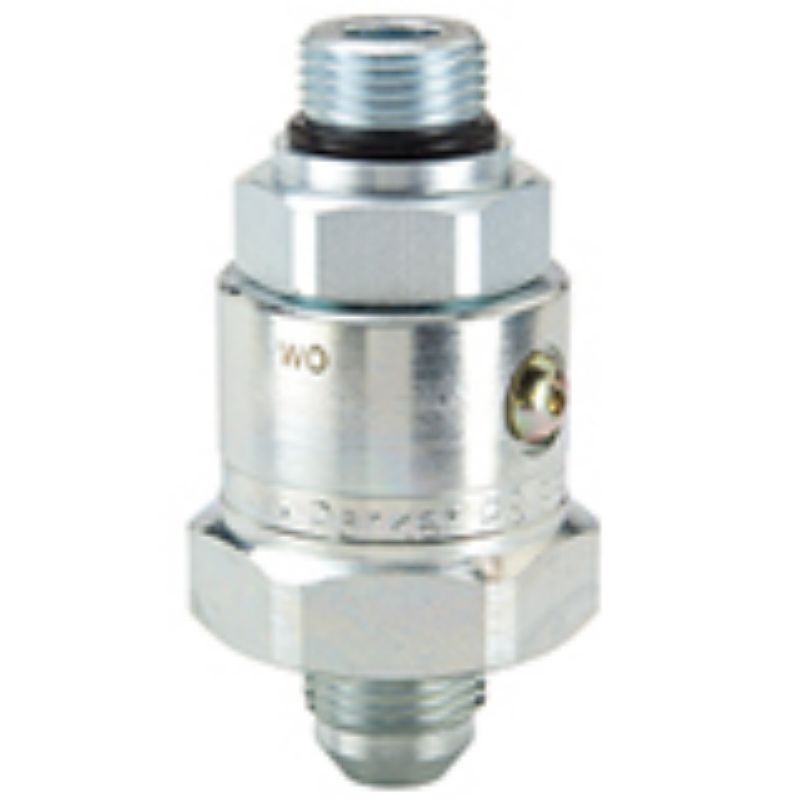

Parker PS1210503-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1210503-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	Inline	Body Size (inch)	3/4
Seal Material	Nitrile	Maximum Working Pressure (psi)	5000
Shaft Connection Style	Male SAE O-ring Straight Thread	Configuration	InLine
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Housing Connection Style	Male JIC 37 degree
Housing Connection Thread Size (inch)	1 1/16 - 12 UN
