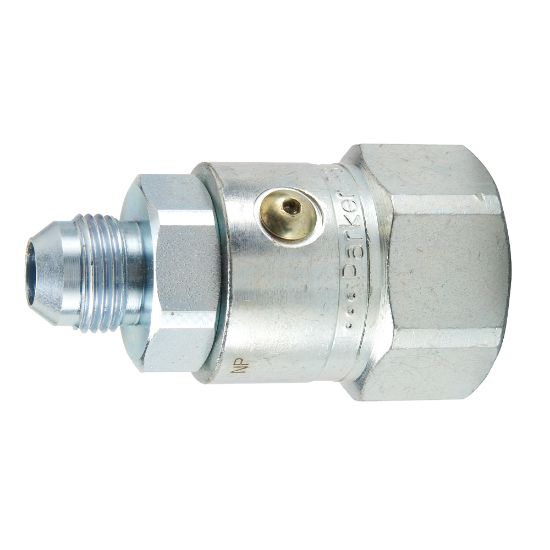

Parker PS1210306-12-12Y - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PS1210306-12-12Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	400
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Configuration	Inline	Minimum Operating Temperature	-15
Maximum Working Pressure (psi)	5000	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Seal Material	Fluorocarbon	Shaft Connection Style	Male JIC 37 degree
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Housing Connection Style	Female JIC 37 degree
Body Size (inch)	3/4	Configuration	InLine
