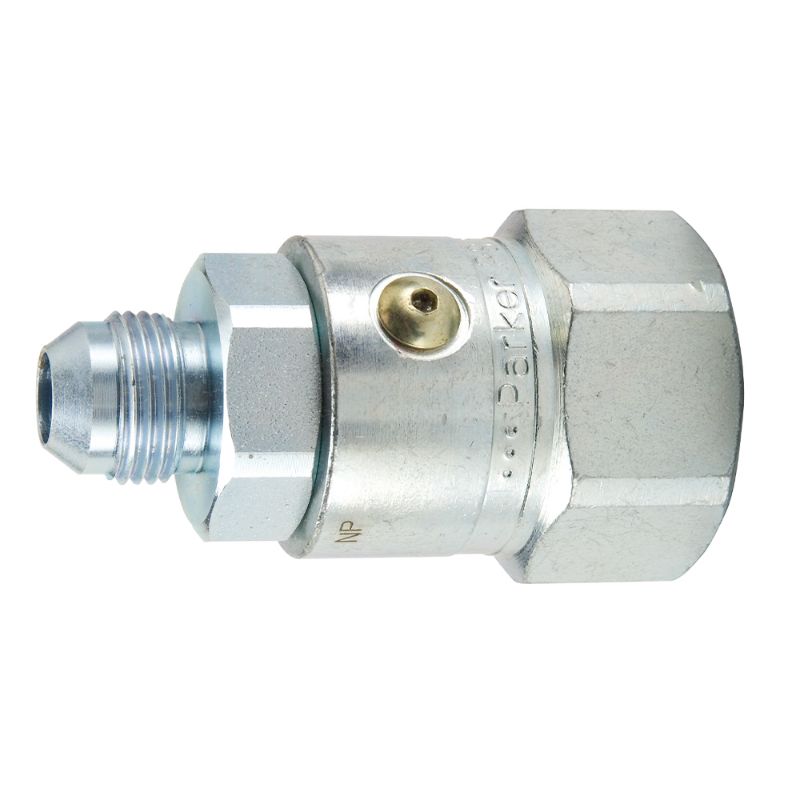

Parker PS1210306-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Name: Parker PS1210306-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series
SKU: PS1210306-12-12
Price: 163.62 USD
Availability: InStock

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:

7 In Stock

Knoxville, TN	3
Knoxville, TN	3
Greensboro, NC	3

Partner Available:

32 In Stock

Brand Parker

Part No. PS1210306-12-12

$163.62

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Maximum Operating Temperature	250 °F
Configuration	Inline	Dimensional Weight	0.12464028776978417 lb
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Shaft Connection Style	Male JIC 37 degree
Housing Connection Style	Female JIC 37 degree	Body Size (inch)	3/4
Seal Material	Nitrile	Maximum Working Pressure (psi)	5000
Configuration	InLine	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
