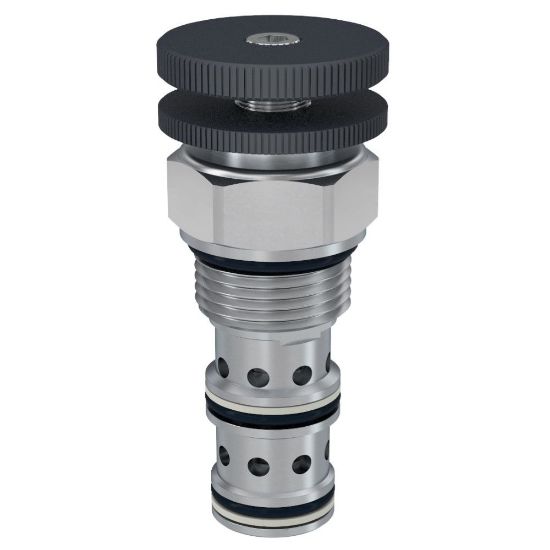

Parker PRH121K10V - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRH121K10V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Function	Pilot Operated	Maximum Tank Pressure	350 bar
Port Thread Size	n/a	Weight	0.27 kg
Cavity Size	C12-3	Maximum Flow Rate	30 Gal/min
Configuration	Pressure Reducing/Relieving	Maximum Inlet Pressure Rating	5500 psi
Maximum Operating Temperature	+204 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Installation Torque	75 Nm	Leak Rate	N/A cc/min
Maximum Drain Flow Rate	0.25 Gal/min	Maximum Pressure Setting	1000 psi
Standard Setting Pressure	34.5 bar	Cracking Pressure	N/A psi
Pressure Control Range	100-1000 psi	Flow Rate	113.7 L/min
Pressure Control Sensitivity	23 per turn bar	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
Flow Rate	30 GAL/MIN, 113.7 L/MIN
