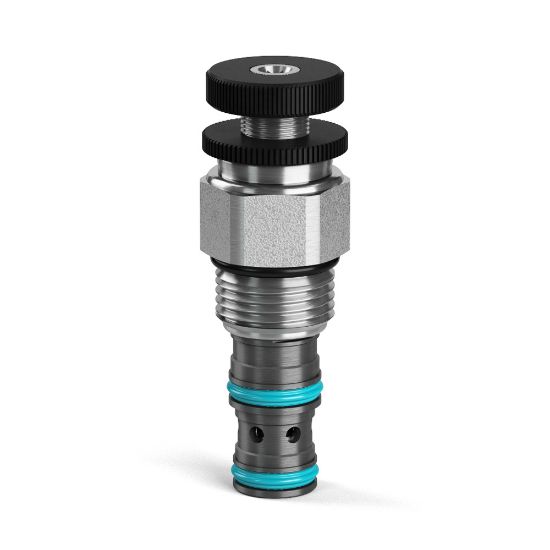

Parker PRH102S10 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. PRH102S10

$57.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Weight	0.23 kg
Maximum Operating Temperature	+200 °F	Maximum Operating Pressure	350 bar
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Screw	Function	Pilot Operated
Maximum Tank Pressure	5000 psi	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	Maximum Inlet Pressure Rating	5500 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200 °F
Installation Torque	69-75 Nm	Flow Rate	56.3 L/min
Valve Material	All parts steel. All operating parts hardened steel.	Pressure Control Range	200-1000 psi
Maximum Drain Flow Rate	0.94 L/min	Maximum Pressure Setting	1000 psi
Standard Setting Pressure	34.5 bar	Configuration	Pressure Reducing
Pressure Control Sensitivity	369 per turn psi	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	200-1000 PSI, 13.8-69 BAR
