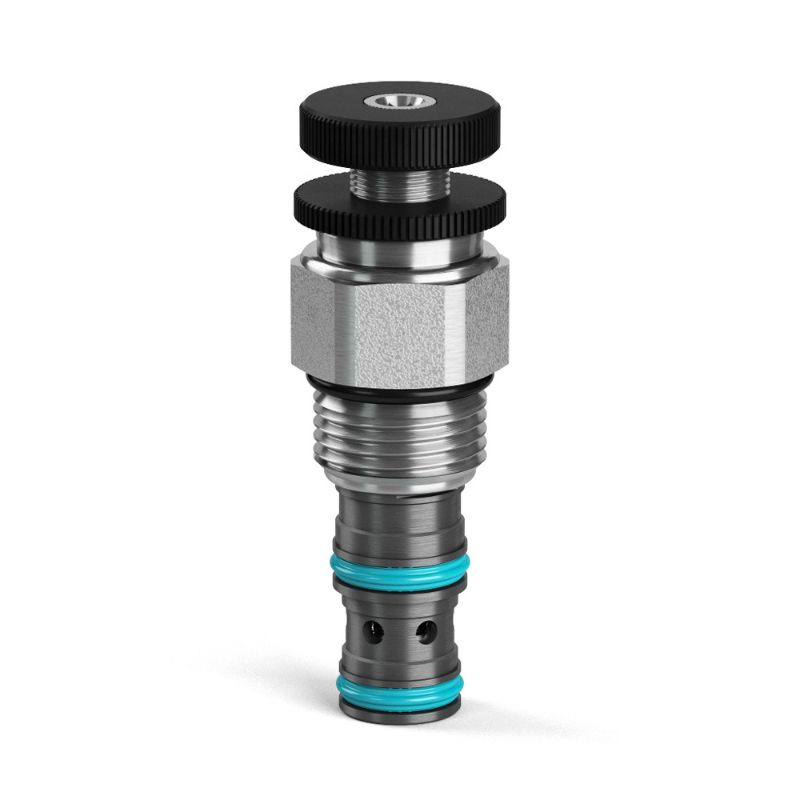

Parker PRH102S03 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. PRH102S03

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-35
Body Material	n/a	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Flow Rate	15	Maximum Flow Rate	15
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.5
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Screw	Function	Pilot Operated
Maximum Tank Pressure	5000	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	Pressure Control Sensitivity	307 per turn
Maximum Inlet Pressure Rating	5500	Maximum Operating Temperature	+200
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200
Installation Torque	51-55	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Drain Flow Rate	0.25	Configuration	Pressure Reducing
Pressure Control Range	100-500	Maximum Pressure Setting	500
Standard Setting Pressure	250	Adjustment Mechanism	Screw
Seal Material	D-Ring (Standard)	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	100-500 PSI, 6.9-34.5 BAR
