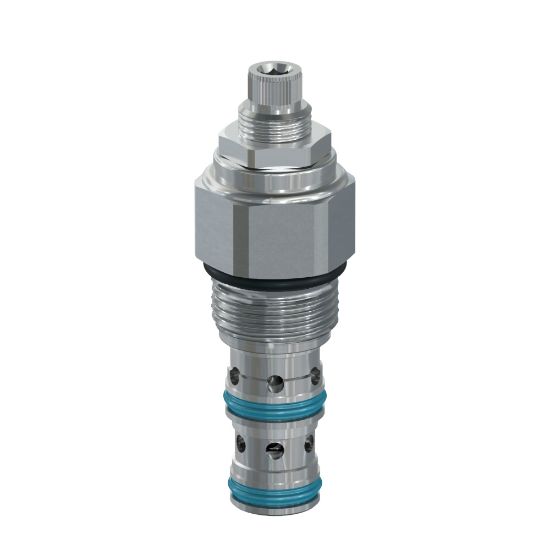

Parker PRH101S10V - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRH101S10V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Weight	0.23 kg	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Screw
Function	Pilot Operated	Maximum Tank Pressure	350 bar
Port Thread Size	n/a	Cavity Size	C10-3
Configuration	Pressure Reducing/Relieving	Maximum Inlet Pressure Rating	5500 psi
Maximum Operating Temperature	+204 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Installation Torque	51-55 lb-ft	Maximum Flow Rate	56.3 L/min
Leak Rate	N/A cc/min	Pressure Control Range	13.7-69 bar
Maximum Drain Flow Rate	0.25 Gal/min	Maximum Pressure Setting	1000 psi
Standard Setting Pressure	500 psi	Cracking Pressure	N/A psi
Pressure Control Sensitivity	285 per turn psi	Seal Material	Fluorocarbon
Adjustment Mechanism	Screw	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	200-1000 PSI, 13.7-69 BAR
