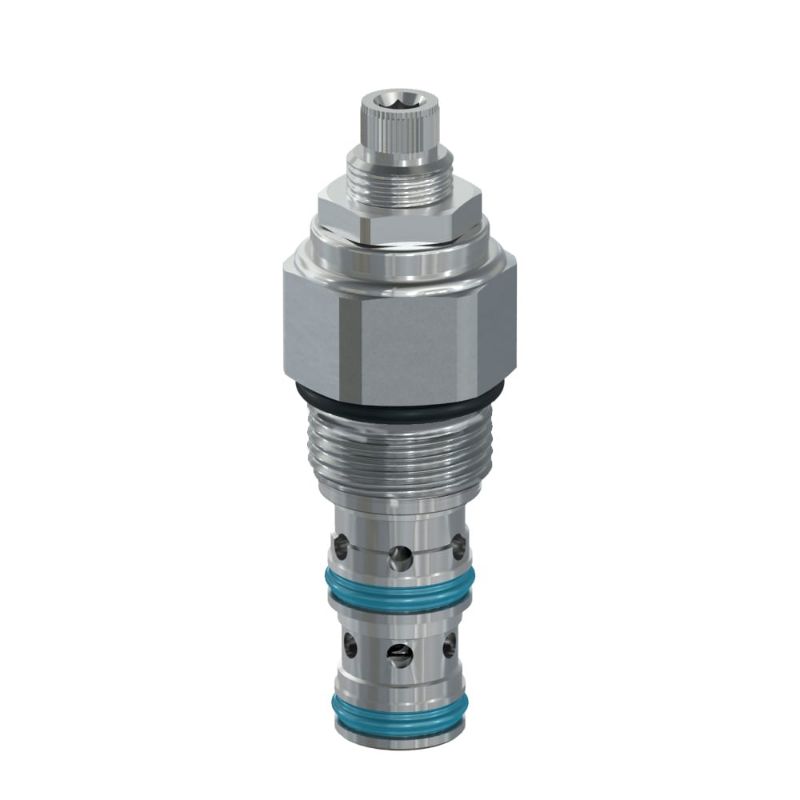

Parker PRH101K10 - Pilot Operated Pressure Reducing Relieving Valves

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. PRH101K10

$75.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Weight	0.23 kg
Maximum Operating Pressure	350 bar	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Knob
Function	Pilot Operated	Maximum Tank Pressure	5000 psi
Port Thread Size	n/a	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	Configuration	Pressure Reducing/Relieving
Maximum Inlet Pressure Rating	5500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Maximum Operating Temperature	+93 °C	Installation Torque	69-75 Nm
Flow Rate	56.3 L/min	Leak Rate	N/A cc/min
Pressure Control Range	13.7-69 bar	Maximum Drain Flow Rate	0.94 L/min
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	34.5 bar
Cracking Pressure	N/A psi	Pressure Control Sensitivity	285 per turn psi
Adjustment Mechanism	Knob	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Seal Material	D-Ring (Standard)
Flow Rate	15 GAL/MIN, 56.3 L/MIN	Pressure Control Range	200-1000 PSI, 13.7-69 BAR
