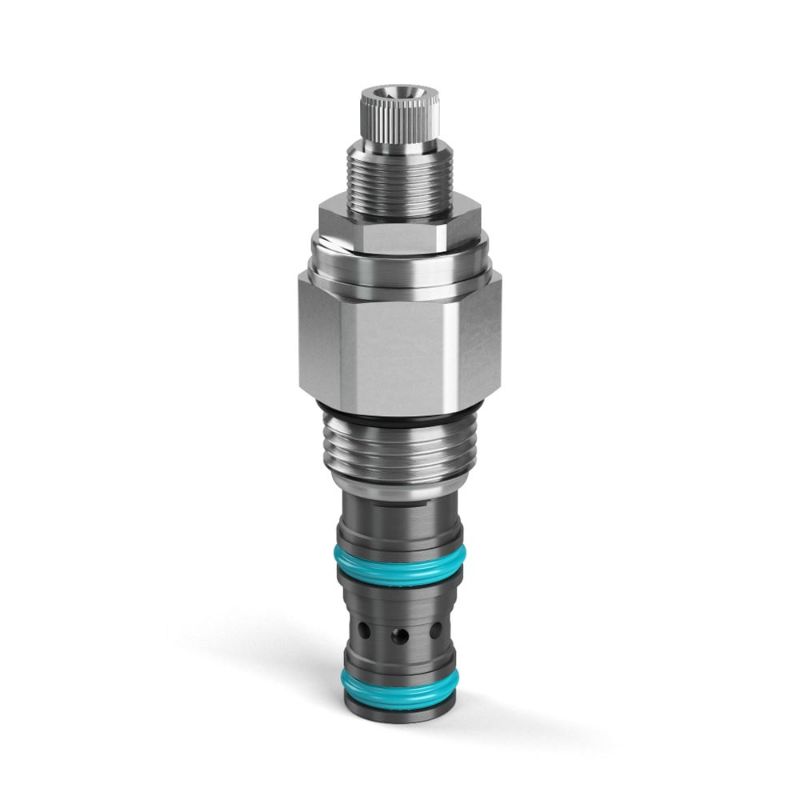

Parker PRH082S10 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. PRH082S10

$69.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Maximum Flow Rate	30 L/min	Flow Rate	30 L/min
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Screw	Function	Pilot Operated
Maximum Tank Pressure	5000 psi	Seal Material	D-Ring (Standard)
Weight	0.25 lb	Cavity Size	C08-3
Maximum Inlet Pressure Rating	380 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-37 to +93 °C	Installation Torque	32-36 lb-ft
Valve Material	All parts steel. All operating parts hardened steel.	Maximum Pressure Setting	1000 psi
Standard Setting Pressure	500 psi	Configuration	Pressure Reducing
Pressure Control Range	6.9-69 bar	Maximum Drain Flow Rate	0.15 Gal/min
Pressure Control Sensitivity	25.4 per turn bar	Adjustment Mechanism	Screw
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Pressure Control Range	100-1000 PSI, 6.9-69 BAR
