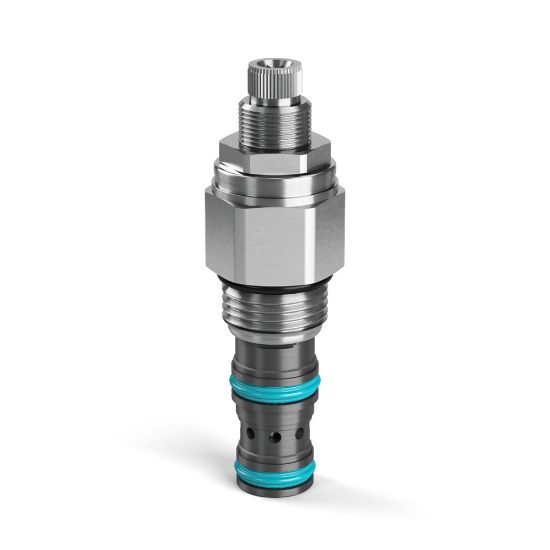

Parker PRH082K10 - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRH082K10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	350 bar	Maximum Flow Rate	30 L/min
Flow Rate	30 L/min	Actuation Type	Pressure Sensing
Weight	0.11 kg	Operation Type	Automatic
Adjustment Mechanism	Knob	Function	Pilot Operated
Maximum Tank Pressure	350 bar	Seal Material	D-Ring (Standard)
Cavity Size	C08-3	Maximum Inlet Pressure Rating	5500 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Installation Torque	32-36 lb-ft	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	34.5 bar
Configuration	Pressure Reducing	Pressure Control Range	100-1000 psi
Maximum Drain Flow Rate	0.56 L/min	Pressure Control Sensitivity	369 per turn psi
Adjustment Mechanism	Knob	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Pressure Control Range	100-1000 PSI, 6.9-69 BAR
