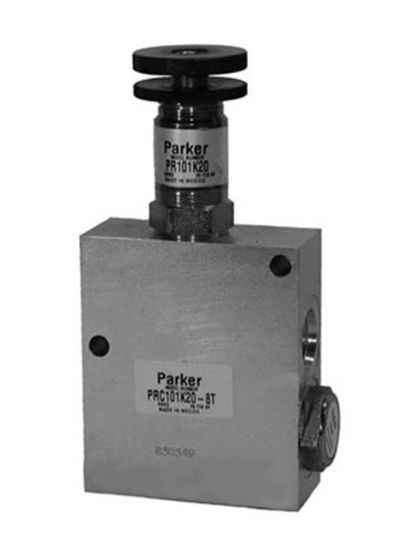

Parker PRCH101K10P15-8T - PRCH101 Reducing/Relieving Valve

Pilot Operated with Check Reducing/Relieving Valve

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PRCH101K10P15-8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Adjustment Type	Knob	Operating Temperature	-45C to +93.3C (-50F to +200F)
UOM	EA	Max Pressure	380 Bar (5500 PSI)
Rated Flow	56.3 LPM (15 GPM)	Pkg Qty/UOM	1 EA
Pressure Range	13.7 - 69 Bar (200 - 1000 PSI)	Seals	“D”-Ring
Body Material	Steel	Port	8 SAE
Pkg Qty	1	Seals	“D”-Ring
Valve Type	Reducing/Relieving Valve	Adjustment Type	Knob
Operating Temperature	-45C to +93.3C (-50F to +200F)	Valve Type Detail	Pilot Operated with Check
Parker Division	Hydraulic Cartridge Systems	Series	PRCH101
Pressure Range	13.7 - 69 Bar (200 - 1000 PSI)	Port	8 SAE
Rated Flow	56.3 LPM (15 GPM)	Max Pressure	380 Bar (5500 PSI)
Parker Group	Hydraulic	Body Material	Steel

Product resources

Pressure Control Valves (PDF)
