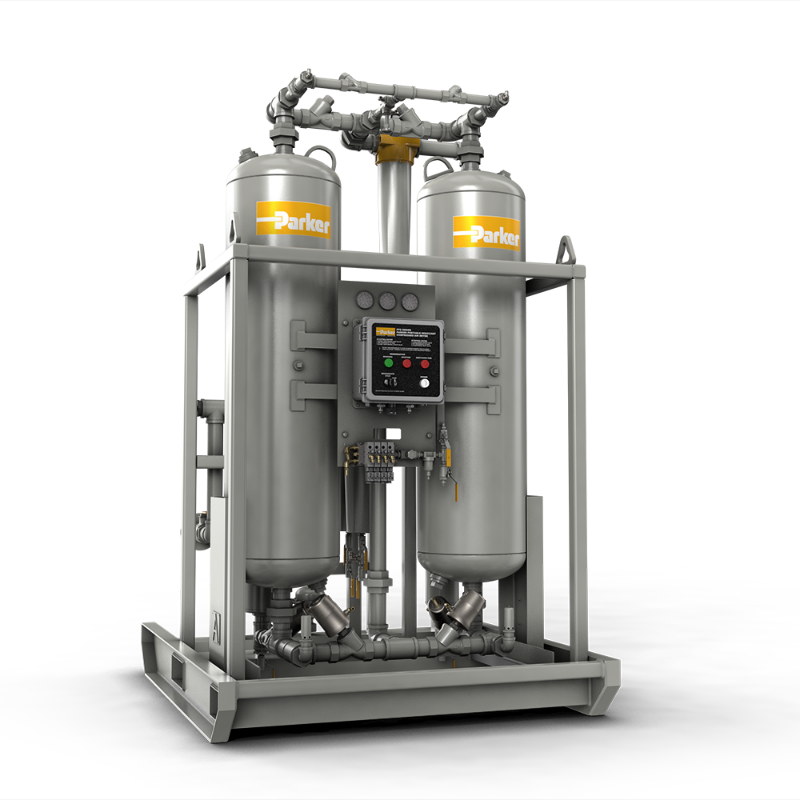

Parker PPD0500RA - PPD Series Portable Desiccant Compressed Air Dryers

Highly engineered portable desiccant compressed air treatment systems, ideal for rental applications, that deliver high quality compressed air in accordance with ISO8573-1, the international standard for compressed air.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PPD0500RA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry Application	Portable / Rental Equipment	Minimum Operating Pressure	5.5 barg
Electronics Type	ETL Listed	Weight	1055 kg
Maximum Operating Temperature	250.0 °F	Division	Industrial Gas Filtration and Generation Division
Technology	Heatless Regeneration	Maximum Ambient Temperature	40.6 °C
Depth	64.5 inch	Electrical Requirements	115V/1Ph/50-60Hz
Minimum Ambient Temperature	4.4 °C	Ingress Protection Rating	NEMA 4
Height	2281.0 mm	Accessories Included	Dewpoint Probe with Digital Dewpoint Display
Pressure Dew Point	-40 °C	Minimum Operating Temperature	4.4 °C
Product Type	Desiccant (Adsorption) Dryer	Width	1369.0 mm
Brand	Parker	Connection Type	2” BOSS/NPT/FLG
Maximum Operating Pressure	10.3 barg	Communication Interface	Modbus via Ethernet and RS485
Flow Rate	500 scfm (847 m3/h)	Cooling Method	Integrated Air Cooled Aftercooler
Design Rating	100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient	Controller Type	Advanced PLC
