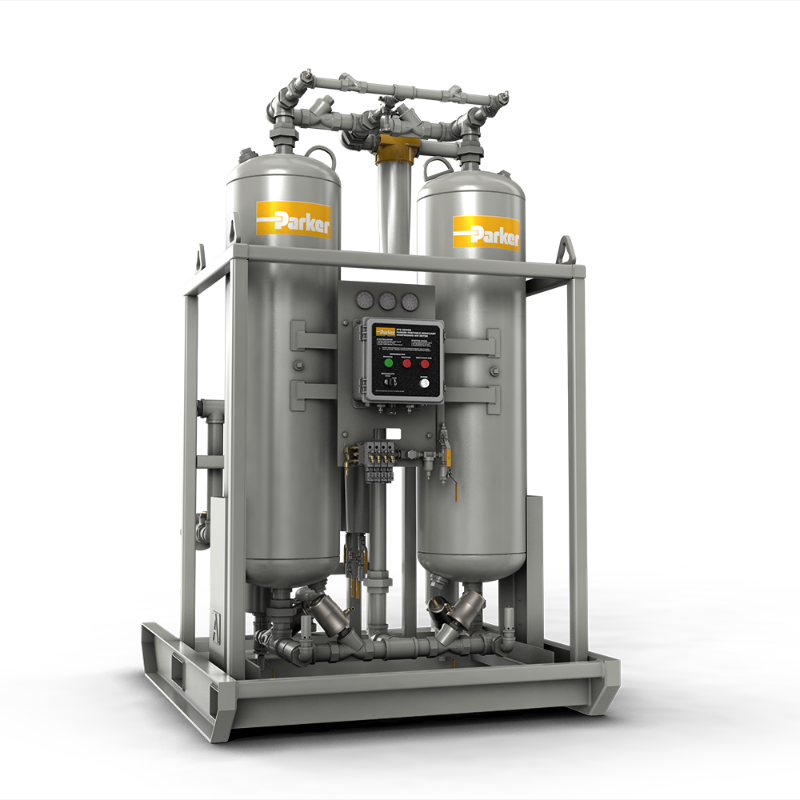

Parker PPD0500BN - PPD Series Portable Desiccant Compressed Air Dryers

Highly engineered portable desiccant compressed air treatment systems, ideal for rental applications, that deliver high quality compressed air in accordance with ISO8573-1, the international standard for compressed air.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PPD0500BN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Height	2281.0 mm	Accessories Included	N/A
Electrical Requirements	115V/1Ph/50-60Hz	Brand	Parker
Connection Type	2” BOSS/NPT/FLG	Pressure Dew Point	-40.0 °C
Weight	2125 lb	Minimum Operating Pressure	80.0 psig
Maximum Ambient Temperature	120.0 °F	Depth	1639.0 mm
Ingress Protection Rating	NEMA 4	Width	1369.0 mm
Communication Interface	n/a	Product Type	Desiccant (Adsorption) Dryer
Division	Industrial Gas Filtration and Generation Division	Minimum Operating Temperature	4.4 °C
Technology	Heatless Regeneration	Minimum Ambient Temperature	4.4 °C
Maximum Operating Pressure	150.0 psig	Maximum Operating Temperature	120.0 °F
Industry Application	Portable / Rental Equipment	Electronics Type	ETL Listed
Design Rating	100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient	Flow Rate	500 scfm (847 m3/h)
Controller Type	Basic PLC	Cooling Method	No cooler
